Write the First DtCraft Program

This page gives you an overview of DtCraft architecture and a quick guide to get your first DtCraft application up and running. We assume you know modern C++11, C++14, or C++17, and basic Linux network concepts, socket, TCP, IO-multiplexing, etc. For a complete guide and API tutorial, please refer to other chapters in the cookbook.

DtCraft from 10,000 Feet

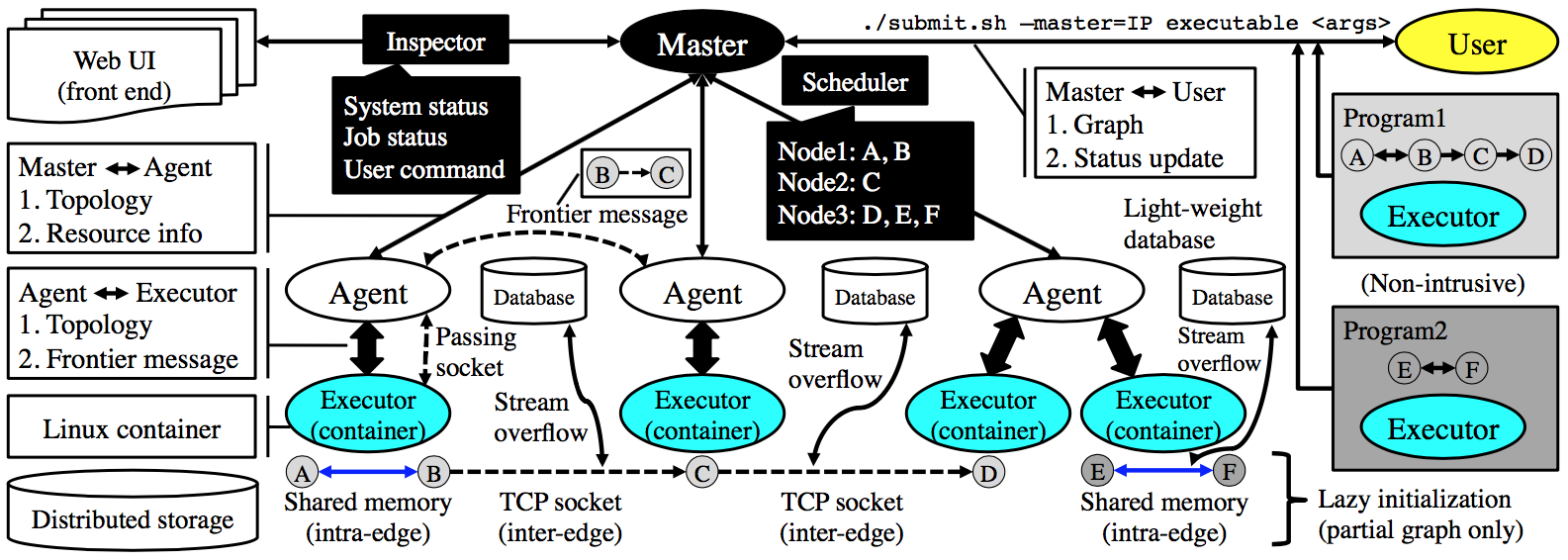

We developed DtCraft from the ground up using modern C++17 to achieve the best performance and programmability. The figure below shows the main components of the DtCraft system. The DtCraft kernel consists of a master daemon and one agent daemon per working machine. You describe an application in terms of a sequential stream graph and submit the executable to the master through our submission script. The kernel transparently deals with difficult concurrency controls including job scheduling, workload distribution, and process communication. Data is transferred through either TCP socket streams on inter-edges or shared memory on intra-edges, depending on the deployment by the scheduler.

When a graph is submitted to the master, the scheduler will partition the graph into a set of topologies depending on the resource requirements described by users. In DtCraft, a topology is the basic unit of a task (container) that is launched by an executor process on an agent node. Once the scheduler has decided the deployment, each topology is marshaled along with graph parameters to form a closure and sent to the corresponding agent for remote execution.

You can understand more about DtCraft in our technical paper to appear in IEEE TCAD 2018.

A Simple Program

Our first DtCraft program program.cpp is a simple graph consisting of two vertices connected with one stream. Vertex A sends a string "test" to vertex B through the stream S. The program stops when vertex B received the message.

#include <dtc/dtc.hpp>

using namespace std::literals;  // for the use of string literal
using namespace dtc::literals;  // for the use of memory literal

int main(int argc, char* argv[]) {

  // define a stream graph
  dtc::Graph G;
  dtc::VertexBuilder A = G.vertex();
  dtc::VertexBuilder B = G.vertex();
  dtc::StreamBuilder S = G.stream(A, B);

  // callback on vertex
  A.on([&] (dtc::Vertex& v) { (*v.ostream(S))("test"s); });

  // callback on input stream
  S.on([&] (dtc::Vertex& B, dtc::InputStream& is) {
    if(std::string s; is(s) != -1) {
      std::cout << "Received: " << s << '\n';
      return dtc::Event::REMOVE;
    }
    return dtc::Event::DEFAULT;
  });

  // request resources
  G.container().add(A).cpu(1).memory(1_GB);
  G.container().add(B).cpu(1).memory(1_GB);

  // execute the stream graph
  dtc::Executor(G).run();
}

Compile and Link

After you successfully built DtCraft, the library can be found under $DTC_HOME/lib/. The variable $DTC_HOME denotes the path to your DtCraft folder. Compile your code together with DtCraft headers and library.

# Compile the DtCraft application
$ g++ program.cpp -o program -O2 -std=c++1z -I $DTC_HOME/include/ -L $DTC_HOME/lib/.libs/ -lDtCraft -lpthread

Remember to add the DtCraft library path to your environment variable LD_LIBRARY_PATH of searching list for dynamically linkable libraries. To run this program, follow the steps described in QuickStart.

Stream Graph

Every DtCraft application runs the user's main function and executes the stream graph described in the context. The dtc::Graph is the main entry to create a stream graph for your application. A stream graph consists of vertices, streams, and containers that are instantiated from the graph API. By default, the stream graph persists in memory and continues to operate until all streams are closed. Let's create a stream graph of two vertices with a single connection.

dtc::Graph G;
dtc::VertexBuilder A = G.vertex();      # Create a vertex A in the graph
dtc::VertexBuilder B = G.vertex();      # Create a vertex B in the graph
dtc::StreamBuilder S = G.stream(A, B);  # Create a stream A->B in the graph

The return is a builder object where you can associate different attributes to these graph components (vertex, stream, container) step by step. Each component is assigned a unique integer key that is deterministic at construction and universal to all executions. The key is implicitly convertible from every builder and is useful in accessing a stream adjacent to a vertex.

VertexBuilder::operator key_type() const;
StreamBuilder::operator key_type() const;
ContainerBuilder::operator key_type() const;

You can define the computation callback for each vertex and stream. The vertex callback is a constructor-like barrier to synchronize all adjacent stream callbacks. The stream callback consists of two types, output stream and input stream. Normally we only define the callback on the input stream side. In the following example, vertex A sends a string "test" to vertex B through stream S.

# Define vertex callback.
A.on([&] (dtc::Vertex& v) { (*v.ostream(S))("test"s); });

# Define the input stream callback.
S.on([&] (dtc::Vertex& B, dtc::InputStream& is) {
  if(std::string s; is(s) != -1) {
    std::cout << "Received: " << s << '\n';
    return dtc::Event::REMOVE;  # Stream must be closed for program to exit.
  }
  return dtc::Event::DEFAULT;
});

The stream graph persists in memory and continues to operate until all streams are closed. Closing one end of the stream will subsequently close the other end. Because of this property, it is important to ensure all streams are properly closed in your control flows or the program will hang forever! Every vertex has a hash map where you can index its output stream pointers and send the data through the operator (). Similarly, you can retrieve the data from an input stream through the operator (). The data type on both sides should match exactly to ensure correct serialization and deserialization. Once the stream graph is decided, you can post resource requirements on different pieces of the graph via the method container.

# Request resources.
G.container().add(A).cpu(1).memory(1_GB);  # Give A 1 CPU and 1 GB RAM.
G.container().add(B).cpu(1).memory(1_GB);  # Give B 1 CPU and 1 GB RAM.

Our container interface is a thin layer for resource control and runtime isolation. When you add a vertex to a container, all its adjacent streams will be included as well. You can optimize your container partitions to guide the scheduler toward the best deployment. By default, we will create a container to include un-containerized vertices. Finally, you dispatch the stream graph through Executor.

# Dispatch the stream graph.
dtc::Executor(G).run();

Vertex Storage

DtCraft uses C++ any to replace the C-style void* pointer in accessing user-space data during the callback. Each vertex has a public member any that can be assigned and modified at any time during a callback to implement the control flow of an application.

# Create a vertex-specific storage.
v.on(
  [] (dtc::Vertex& v) {
    v.any = my_data_type();
    auto& ref = std::any_cast<my_data_type&>(v.any);
    // access the data through ref
  }
);

Stream Access

The invocation of I/O stream is asynchronous. On the read side, the callback is invoked when data is available in the corresponding stream channel. Similarly, the write callback happens at the moment data is flushed to the kernel buffer. Applications normally do not define the write callback, except for diagnostic purpose. Writing data to our output stream autonomously triggers a write event to deal with the synchronization betwee our stream buffer and the associated device. You can access any output stream adjacent to a vertex through the corresponding key.

# Access an adjacent output stream
v.on(
  [key] (dtc::Vertex& v) {
    (*v.ostream(key))("write through stream 'key'");
  }
);

DtCraft has a built-in serialization and deserialization library for streaming the data between two ends. The library provides default methods for all arithmetics and most C++ STL objects on top of our streaming interface, dtc::OutputStream and dtc::InputStream. Most complex objects can be created combining these basics. To pass your data through our stream interface, simply add a public method archive to your object and include members in need.

struct Data {
  int id1, id2, id3;
  std::string name;

  template <typename T>
  auto archive(T& ar) {  // ar takes a variadic argument list
    return ar(id1, id2, id3, name);
  }
}

Where to Go from Here?

Congratulations! You have just accomplished the first DtCraft application. Follow the steps described in QuickStart to deploy your application in either local mode or cluster mode.

For an in-depth overview of the DtCraft, head to other chapters in the cookbook.
